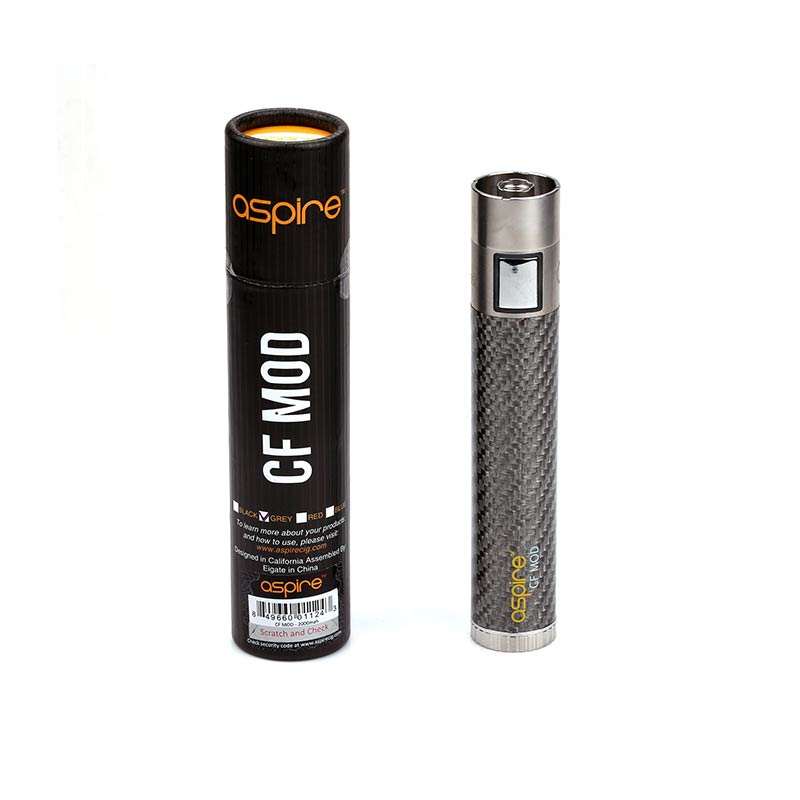

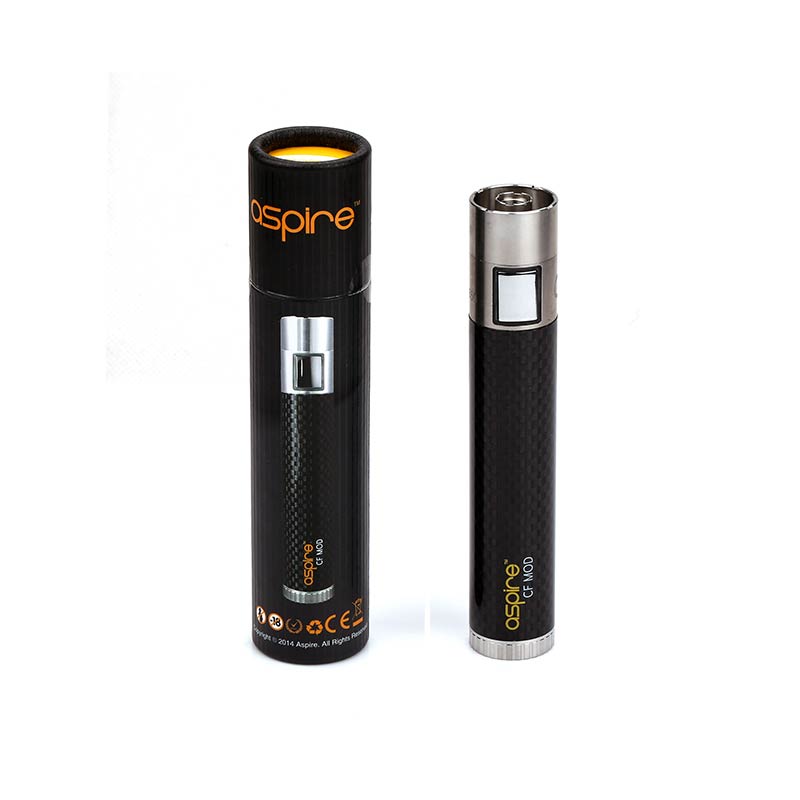

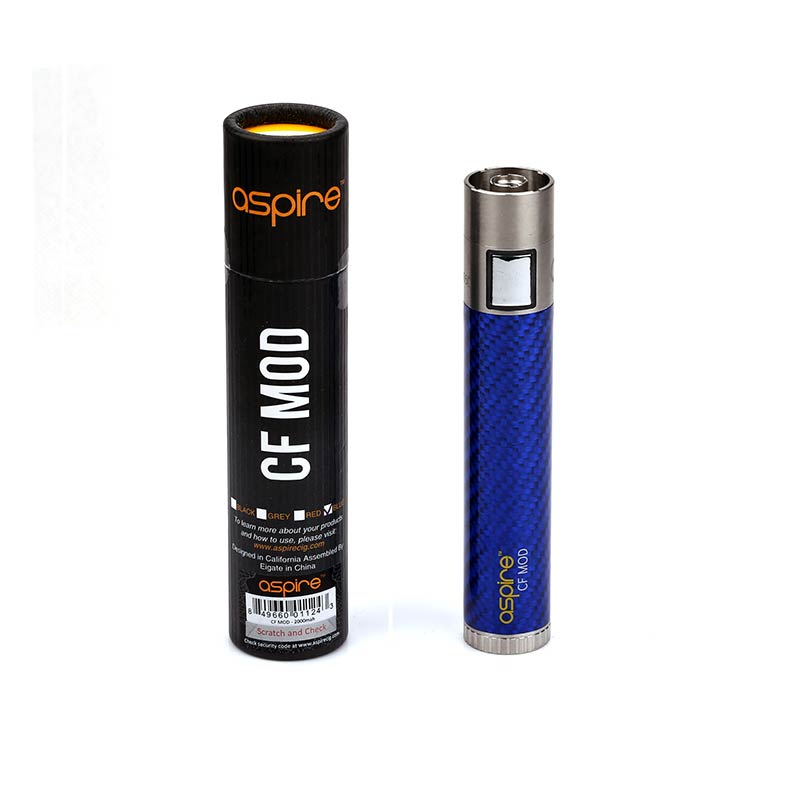

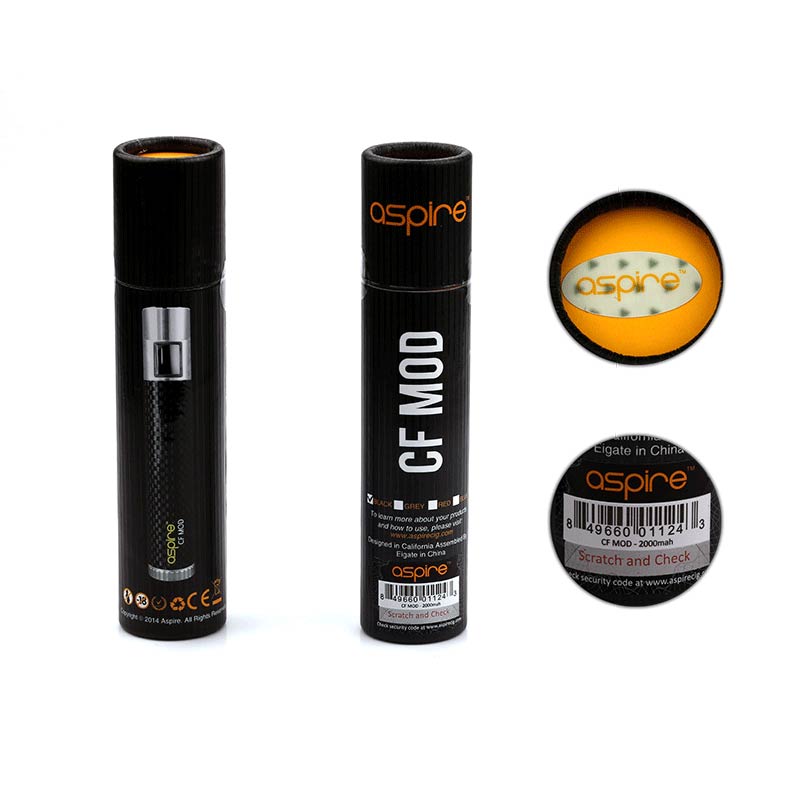

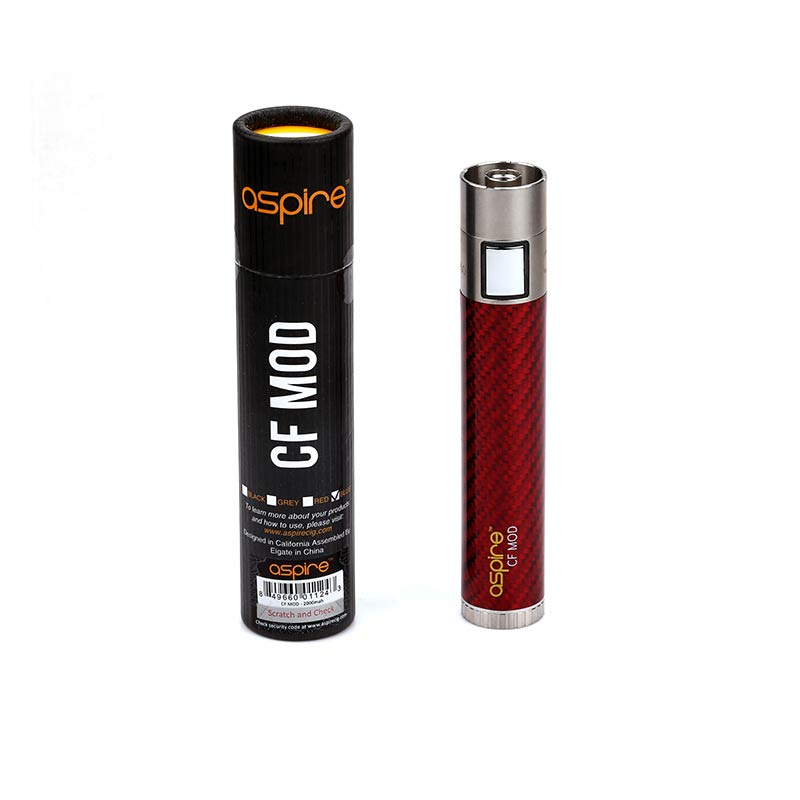

Aspire CF MOD Battery

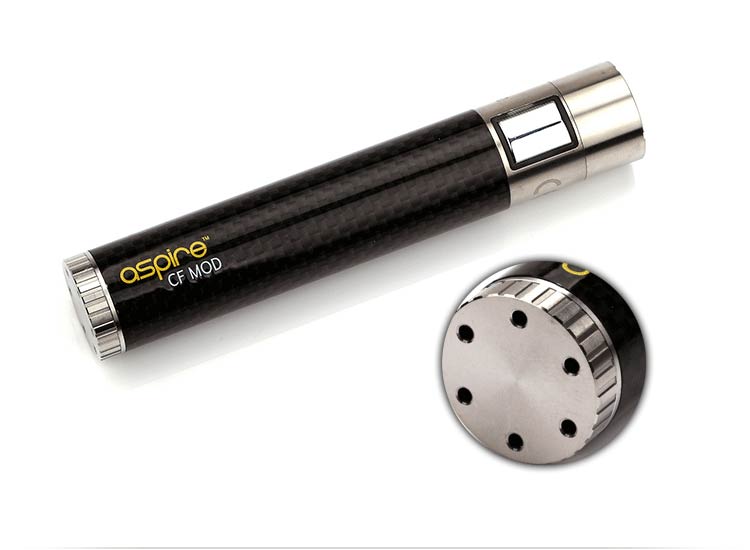

1. Carbon Fiber Coated Tube

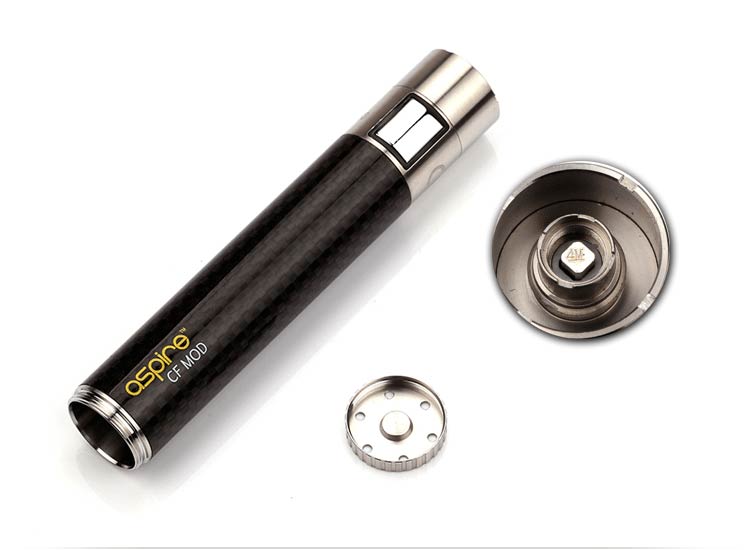

2. Spring Connector Design

3. Multiple Protections

4. Lock and Unlock Function

5. LED Light Indicator

Thread: 510

Fit Battery: 18650

Output Voltage: 4.2V (full power output)

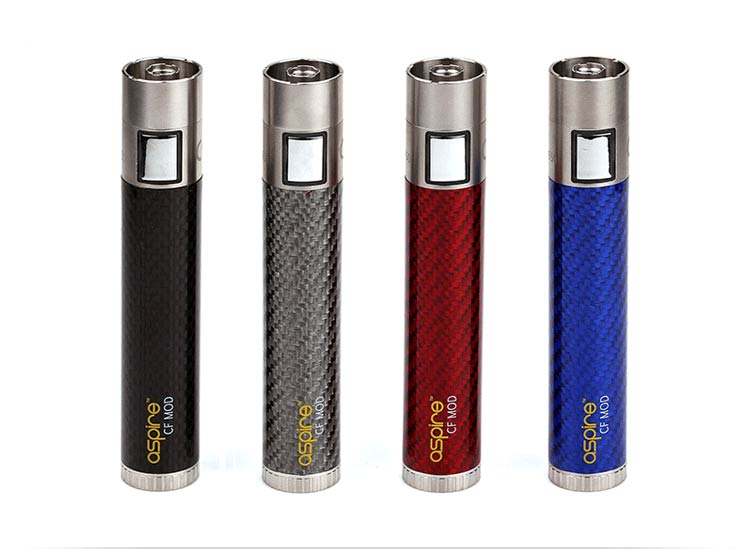

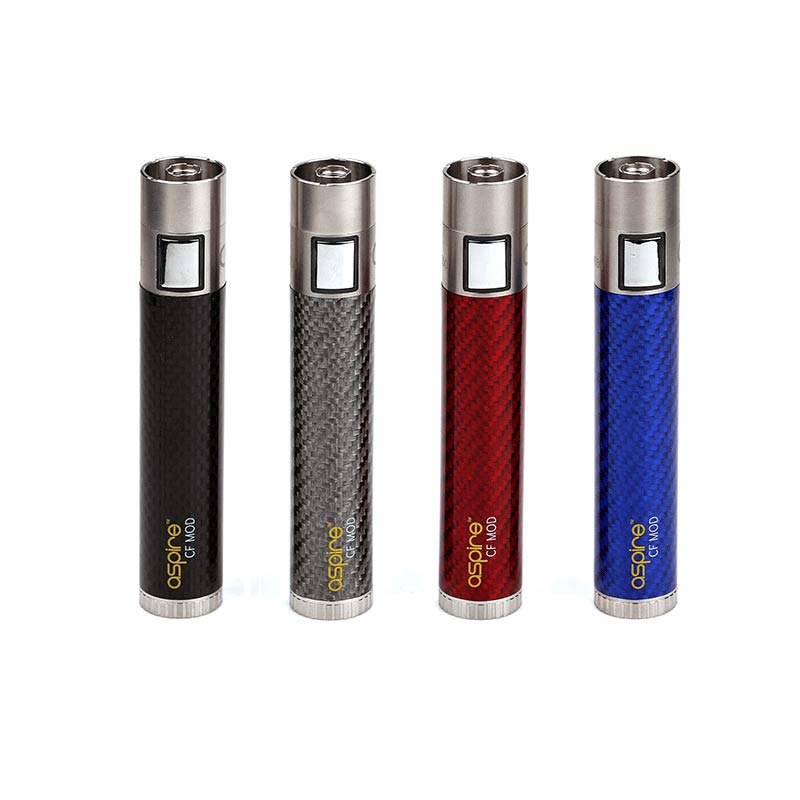

Available Colors: Black, Red, Blue, Grey

Size: 22*121.5mm

1. ON/OFF: CF MOD can be turned on/off by 5 consecutive clicks on the power button. When it is on, the button turns blue with every pressing.

2. LED Light Indicator: Blue LED light means the voltage range is 3.5-4.2V. The Orange LED light indicates a voltage less than 3.5V.

3. Lock and Unlock Function: Press the button for 5 times in 2 seconds to lock the battery. The LED lights will flash 3 times. Repeat this procedure or recharge to unlock.

4. Over-discharge Protection: When battery voltage is less than 2.8V (low battery), the Orange LED light will blink 15 times. The atomizer will remain OFF.

Aspire Atlantis/Atlantis 2/Triton, Kanger Subtank Mini, Joyetech Delta 2, etc

6 Months excluding the human-caused problem

1. If the indicator light stay ON for long time or the battery surface becomes too hot, please disconnect the battery from the atomizer immediately.

2. Do not force battery connection to other attachments.

3. Please read the user manual carefully before using this device.

4. Do not leave the device in high temperature or damp conditions, otherwise it may be damaged.
